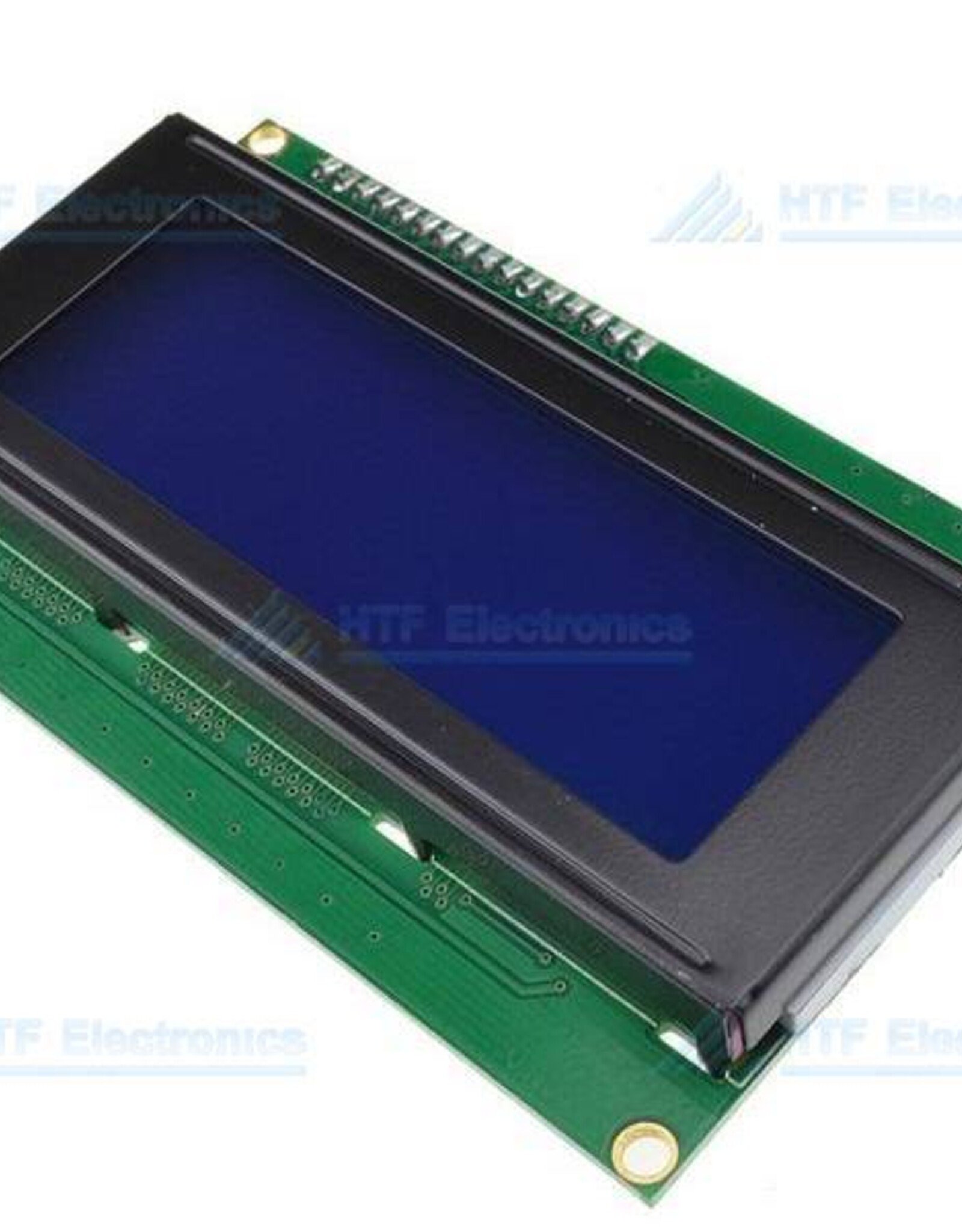

LCD Module Blauw Wit 20 x 4 Karakters met I2C Aansturing
| Beschikbaarheid: | Op voorraad (2) |
With this I2C interface LCD module, you will be able to realize data display via only 2 wires. If you already has I2C devices in your project, this LCD module actually cost no more resources at all. It is fantastic for Arduino based project.
Specification:
Interface: I2C
I2C Address: 0x20
Sofware version :0022
SDA (DATA) -> analog input pin 4
SCL (CLOCK) -> analog input pin 5
Pin Definition : GND.VCC.SDA.SCL
Back lit (Blue with white char color)
Supply voltage: 5V
Pcb Size : 60mm×99mm
Contrast Adjust : Potentiometer
Backlight Adjust : Jumper
