DESCRIPTION

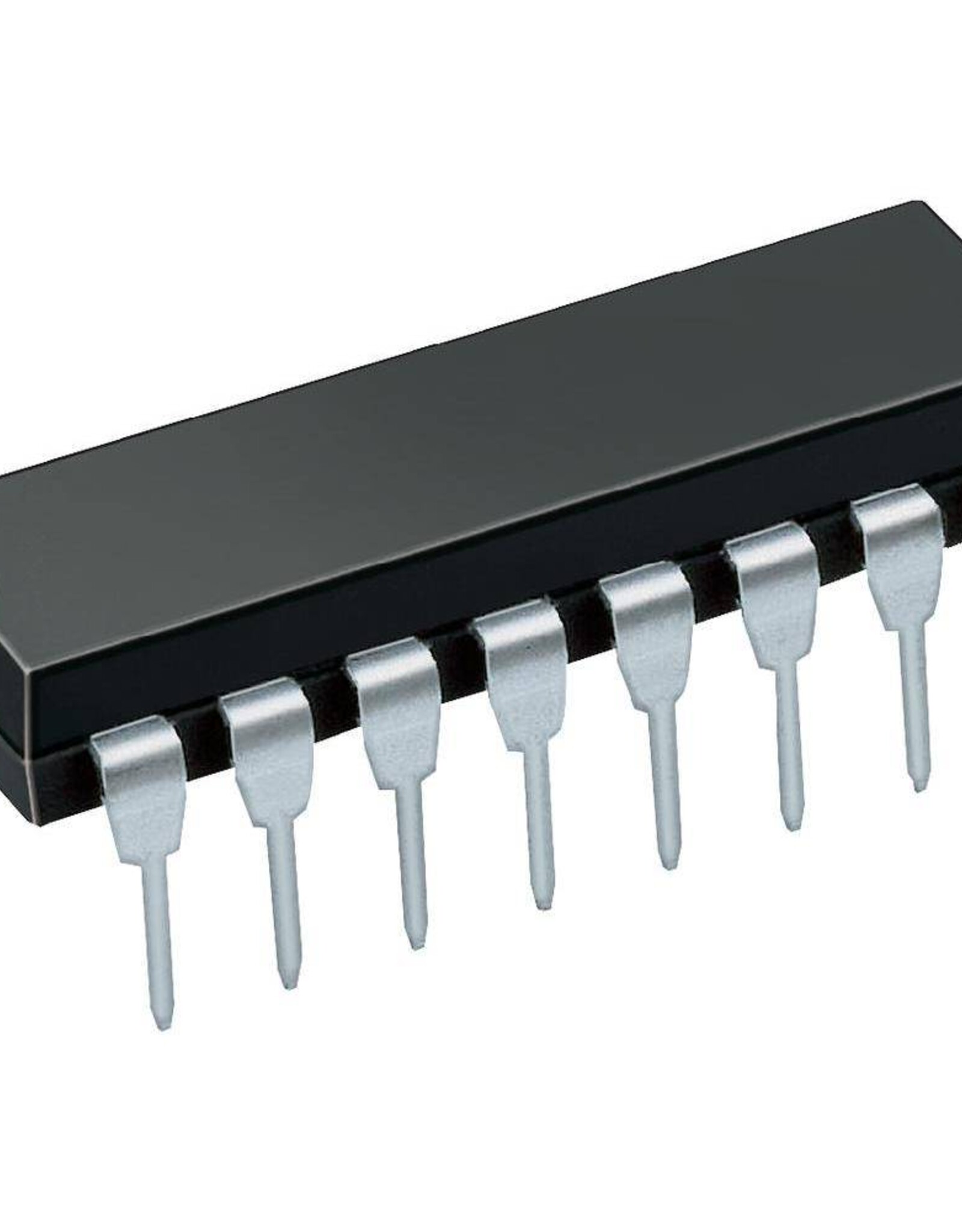

The UTC UCD4081B contains four independent 2-input AND
gates,they perform the function Y=A •B in positive logic.

FEATURES

5V-10V-15V Parametric Ratings
Quad 2-Input AND Gate
Symmetrical Output Characteristics
Maximum Input Current of 1uA at 15V Over Full Package Temperature Range
Low Power TTL:
Fan Out of 2 Driving 74L or 1 Driving 74LS Compatibility
